Introduction

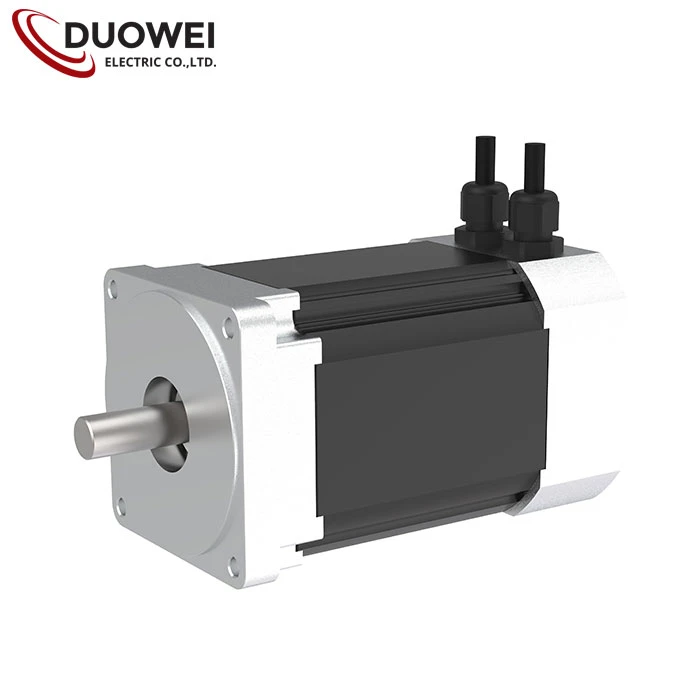

This particular brushless DC motor comes standard with a power output of 48 volts and 400 watts, and is available with or without Hall options. Additional components like brakes, encoders, and gearboxes can be installed to suit various needs. The motor is compact in size, lightweight, and operates at a low noise level, making it a great fit for a range of applications such as intelligent industrial equipment and mobile robotics.
Motor Characteristics
Motor Data | Units | Part No. |
83ZWS03 | ||
Rated voltage | VDC | 48 |
Rated current | A | 10 |
Rated torque | Nm | 1.31 |
Rated speed | rpm | 3000 |
Rated power | W | 412 |
Peak torque | Nm | 3.93 |
Peak current | A | 24.4 |
No-load speed | rpm | 3642 |
Back-EMF constant | V/KRPM | 13.18 |
Torque constant | NmA | 0.127 |
Terminal Resistance | Ω | 0.11 |
Inductance | mH | 0.12 |
IP rating | / | IP40 |
Motor weight | Kg | 3.5 |
Outline size
Performance curve
Why choose us ?
1.We are the professional manufacturer of all kinds of motor.
2.Quality Control through the whole Manufacturing process.
3.Excellent quality testing equipment, 100% inspection and data traceability.
4.Our facility passed ISO 9001, ISO14001, OHSAS18001 and IATF 16949.
5.Different designs are available according to customer requests.
FAQ
Q:What is the delivery time of your motor?
A:In general, the delivery time of our motor is about 30-50 days, customized motor will be delivered as the negotiation with our clients.
Q:Can the motor be customized as our need, such as put on our logo?
A:Surely our motor can be customized as your need, Put on your logo is also available.
Q:As the shipping period will take long time, how can you make sure the motor won’t be broken?
A:For different products, we will use different customized EPE packaging to protect the motor from damage, rust and mildew.
