Introduction

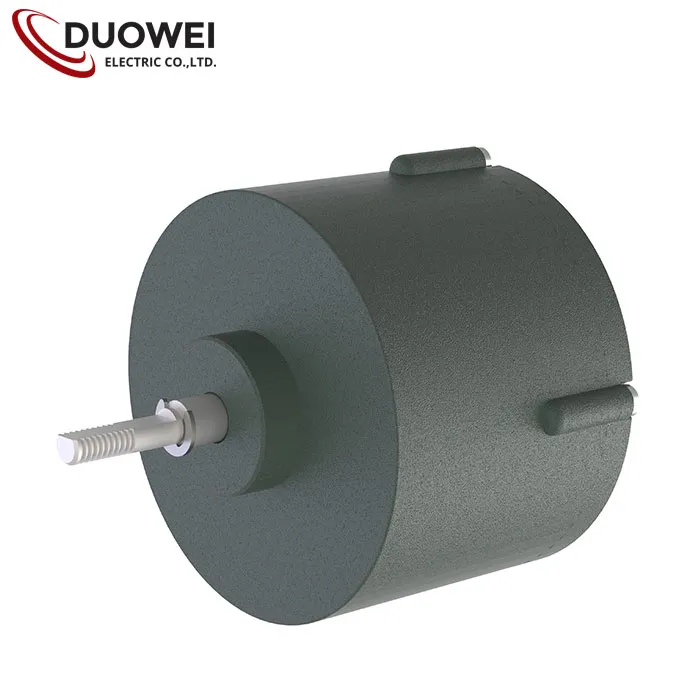

The 20W Brushless DC Motor is a 24V motor with a built-in drive that is capable of achieving stepless speed regulation ranging from 1 to 5 gears. It is commonly used in air purifiers and fresh air systems that demand high noise and control. Furthermore, we offer options to customize the motor's voltage, rated torque, speed, current, power, shaft extension characteristics, and dimensions to suit your specific requirements. Let us know your needs, and we will cater to them accordingly.
Motor Characteristics
Motor Data | Units | Part No. |
72ZWS100-24 | ||
Rated voltage | VDC | 24 |
Rated current | A | 2.32 |
Rated torque | Nm | 0.19 |
Rated speed | rpm | 2000 |
Rated power | W | 40 |
Peak torque | Nm | 0.57 |
Peak current | A | 6.14 |
No-load speed | rpm | 2600 |
Back-EMF constant | V/KRPM | 9.23 |
Torque constant | NmA | 0.089 |
Terminal Resistance | Ω | 0.52 |
Inductance | mH | 1.77 |
IP rating | / | IP40 |
Motor weight | Kg | 0.8 |
Outline size

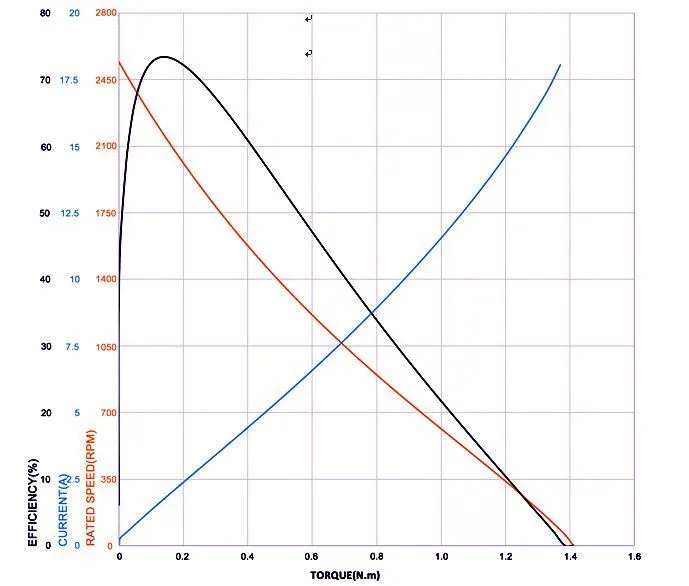

Performance curve
Our service
●Provide technical design and solutions;
●Design and manufacture of non-standard equipment;
●Provide professional technical training and on-site guidance according to the contract;
●We offer different warranty time for different products;
●Remote technical consultation and service;
●Other special technical services provided according to customer requirements.
FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have builded up our company since 1997.
2.Q:What is the delivery time of your motor?
A:In general, the delivery time of our motor is about 30-50 days, customized motor will be delivered as the negotiation with our clients.
3.Q: May i know which payment will be accepted by your company?
A:So far 100%T/T before shipment, and after several years of cooperation, we can discuss it further.
