Introduction
The 24V PMDC Motor is a type of permanent magnet DC motor that is perfect for use as both a control motor and a drive motor. It has a 63mm outer diameter and can accommodate various gearboxes to suit different applications such as worm gearboxes and planetary gearboxes. Furthermore, it finds widespread use in a variety of applications, including solar energy systems and door operator systems. Additionally, we can provide customized development services to deliver solutions that meet the specific requirements of our clients.
Motor Characteristics
Motor Data | Units | Part No. |
63ZY026 | ||
Rated voltage | VDC | 24 |
Rated current | A | 2.5 |
Rated torque | mN.m | 180 |
Rated speed | rpm | 2150 |
Rated power | W | 40 |
Max. torque | mN.m | 0.581 |
Max. current | A | 7.5 |
No-load speed | rpm | 2700 |
Motor length L | mm | 95 |
Motor weight | Kg | 1.2 |
IP rating | / | IP40 |

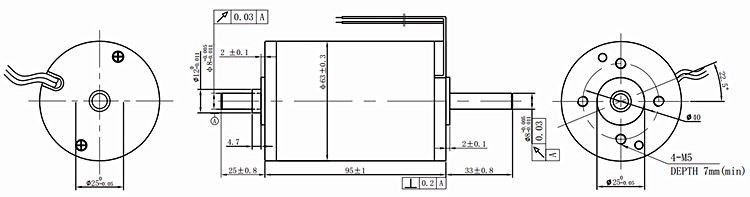

Outline size

Performance curve

Our service
●Provide technical design and solutions;
●Design and manufacture of non-standard equipment;
●Remote technical consultation and service;
●Other special technical services provided according to customer requirements.

FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and we have builded up our company since 1997.
2. Q: Can you send me samples?
A:We will choose the different type of motor according to your requirement, and it is OK for us to send you the samples for testing.
3. Q:How is your goods quality?
A:We cooperated with many world class companied for many years, for examples, EBM, WITTUR, GATES, APEX, K&S, etc. our products received good response from our customers.
