Introduction
The Brushless DC Motor Electronic utilizes a specialized brushless DC motor driver chip that boasts high integration and a compact design, delivering a variety of benefits such as optimal protection, well-organized wiring, and exceptional reliability. This driver is specifically designed to drive small yet high-powered brushless DC motors with a maximum rated power of 200W.
Characteristics
Data | Units | Part No. |
DBLS-01-S | ||
Input voltage | VDC | 24~48 |
Continuous output current | A | 10 |
Speed voltage input | VDC | 0~5 |
Working temp. | ℃ | 0~+45℃ |
Storage temp. | ℃ | -20~*85℃ |
Use and storage humidity | % | ＜85% |
Structure | / | Wall-mountable type |
Cooling | / | Radiator |
Control signal | / | Isolation |
Suitable for motor | / | ≤200W |
Control Terminal
No. | Terminal Name | Description |
8 | GND | GND terminal |
7 | F/R | CW/CCW terminal |
6 | EN | Stop/Start terminal |
5 | BK | Brake terminal |
4 | SV | Analogy signal input terminal |
3 | PG | Speed outputterminal |
2 | ALARM | Alarm output terminal |
1 | +5V | +5V power output terminal |
Hall Signal Terminal
No. | Name | Description |
1 | GND | Hall sensor Negative |
2 | HA | Hall sensor A phase |
3 | HB | Hall sensor B phase |
4 | HC | Hall sensorC phase |
5 | +5V | Hall sensor Positive |
Motor Connection Terminal
No. | Name | Description |
1 | DC+ | DC+ |
2 | DC- | DC- |
3 | FG | For the ground |
4 | U | BLDC winding U phase(A) |
5 | V | BLDC winding V phase(B) |
6 | W | BLDC winding W phase(C) |

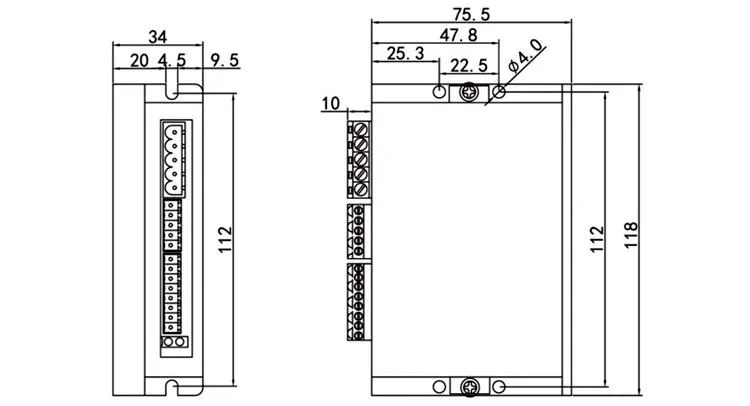

Outline size
Our service
●Provide technical design and solutions;
●Design and manufacture of non-standard equipment;
●Provide professional technical training and on-site guidance according to the contract;
●We offer different warranty time for different products.
FAQ
1. Q:Which level of quality are your products?
A:We have got CE, ISO, SGS, TUV, UL,CCC certificate for part of our product so far.
2. Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.
3. Q: why choose us?
A:We are one of High-tech Enterprises. Our facilityhaves passed ISO 9001, ISO14001, OHSAS18001 and IATF 16949.
